Description

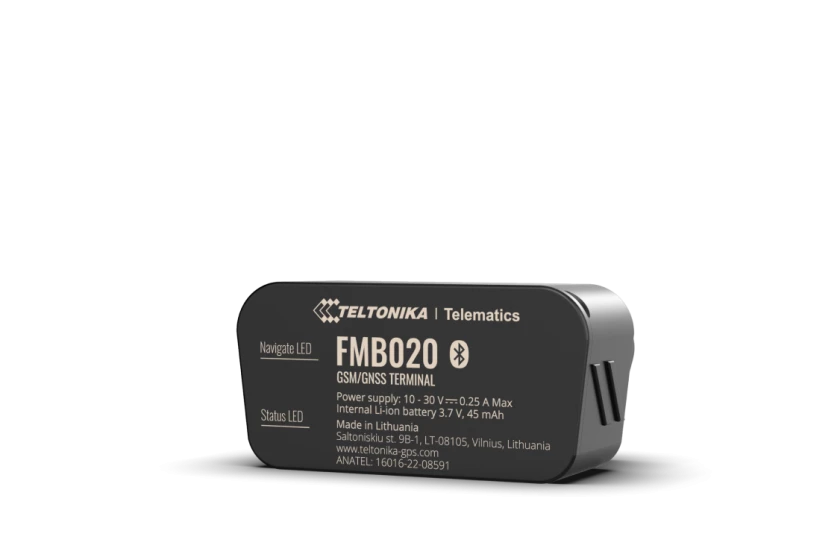

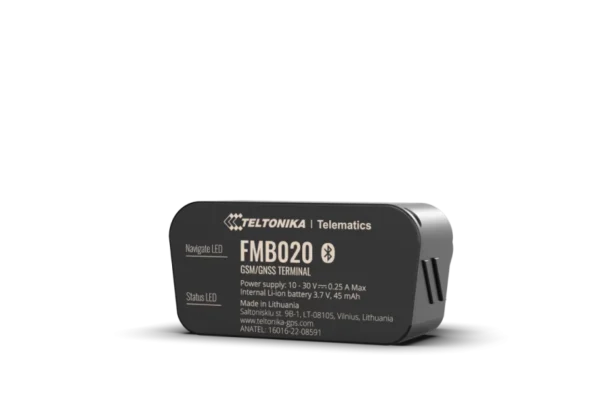

FMB020
2G ultra-small Plug & Play tracker for a wide range of use cases
Additional information
| Module | Name: Teltonika TM2500 Technology: GSM/GPRS/GNSS/BLUETOOTH |
|---|---|
| GNSS | GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Receiver: 33 tracking channel 99 acquisition channel Tracking sensitivity: -165 dBM Position Accuracy: < 2.5 m CEP Hot start: < 1 s Warm start: < 25 s Cold start: < 35 s |
| Cellular | Technology: GSM 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer: GPRS Multi-Slot Class 12(up to 240 kbps) Data support: SMS (text/data) |
| Power | Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection Back-up battery: 3.7 V 45 mAh Power consumption: At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal) Interface OBDII Socket GNSS antenna Internal High Gain |
| Bluetooth® | Specification: 4.0 + LE Supported peripherals: Temperature and Humidity sensor, Headset, Inateck Barcode |
| Interface | Connection: OBDII Socket GNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 Micro-USB LED indication: 2 status LED lights SIM: Nano-SIM Memory: 128MB internal flash memory |
| Physical specification | Dimensions: 52.6 x 29.1 x 26 mm (L x W x H) Weight: 63 g |
| Operating environment | Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP41 Battery charge temperature: +10 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C Battery storage temperature: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | Sensors: Accelerometer Scenarios: Green Driving, Over Speeding detection, Jamming detection, Excessive Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator SMS: Configuration, Events, Debug GPRS commands: Configuration, Debug Time Synchronization: GNSS, NITZ, NTP Fuel monitoring: GNSS Fuel Counter Ignition detection: Accelerometer, External Power Voltage |
| Certification & approvals | Regulatory: CE/RED, E-Mark, EAC, RoHS, REACH, SIRIM QAS |
