Description
FMB202
0.4 Ah
1.8 Ah

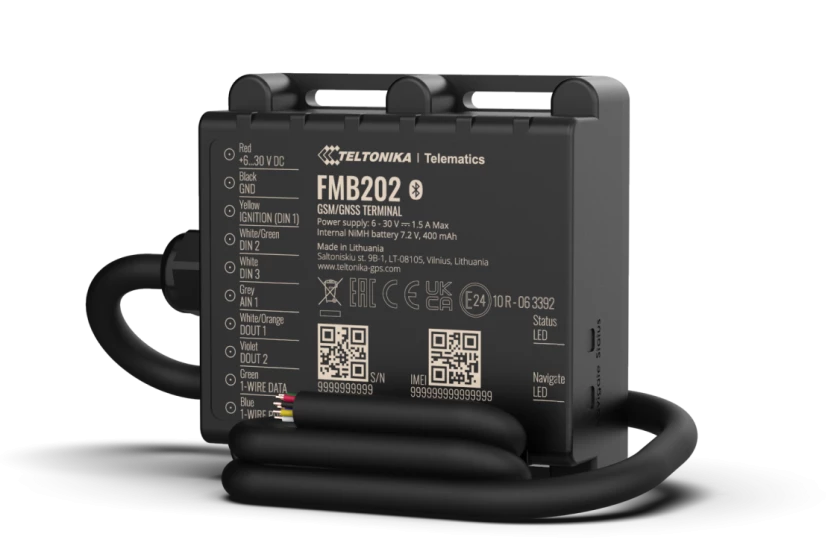

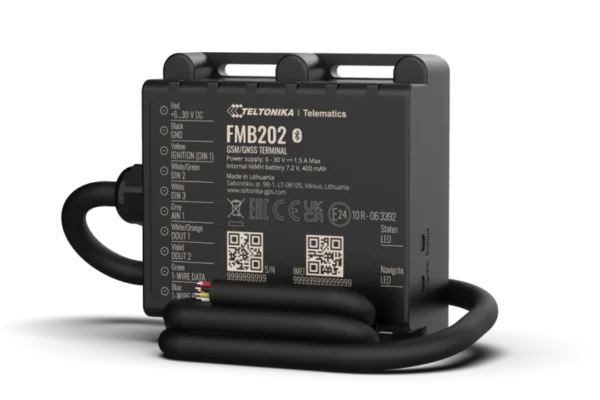

2G tracking device with a robust IP67 casing and 6-30V voltage range
FMB202
FMB202
0.4 Ah
1.8 Ah
2G tracking device with a robust IP67 casing and 6-30V voltage range
Additional information
| Module | Name: Teltonika TM2500 Technology: GSM/GPRS/GNSS/BLUETOOTH |
|---|---|
| GNSS | GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Receiver: 33 tracking channel 99 acquisition channel Tracking sensitivity: -165 dBM Position Accuracy: < 2.5 m CEP Hot start: < 1 s Warm start: < 25 s Cold start: < 35 s |
| Cellular | Technology: GSM 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B Data support: SMS (text/data) |
| Power | Input voltage range: 6–30 V DC with overvoltage protection Back-up battery: 400 mAh Ni-MH battery (2.88 Wh) Power consumption: At 12V < 1,9 mA (Ultra Deep Sleep) At 12V < 3,7 mA (Deep Sleep) At 12V < 4 mA (Online Sleep) At 12V < 11,6 mA (GPS Sleep) At 12V < 28,3 mA (nominal) |
| Bluetooth® | Specification: 4.0 + LE Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| Interface | Digital Inputs: 3 Digital Outputs: 2 Analog Inputs: 1 1-Wire data: 1 1-Wire power: 1 GNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 Micro-USB LED indication: 2 status LED lights SIM: Micro-SIM or eSIM Memory: 128MB internal flash memory |
| Physical specification | Dimensions: 72,5 x 73 x 27,3 mm (L x W x H) Weight: 205 g |
| Operating environment | Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP67 Battery storage temperature: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | Sensors: Accelerometer Scenarios: Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®) SMS: Configuration, Events, DOUT control, Debug GPRS commands: Configuration, DOUT control, Debug Time Synchronization: GNSS, NITZ, NTP Fuel monitoring: LLS (Analog), OBDII dongle Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Certification & approvals | Regulatory: CE/RED, Pulse 5a, E-Mark, EAC, RoHS, REACH |
