Description

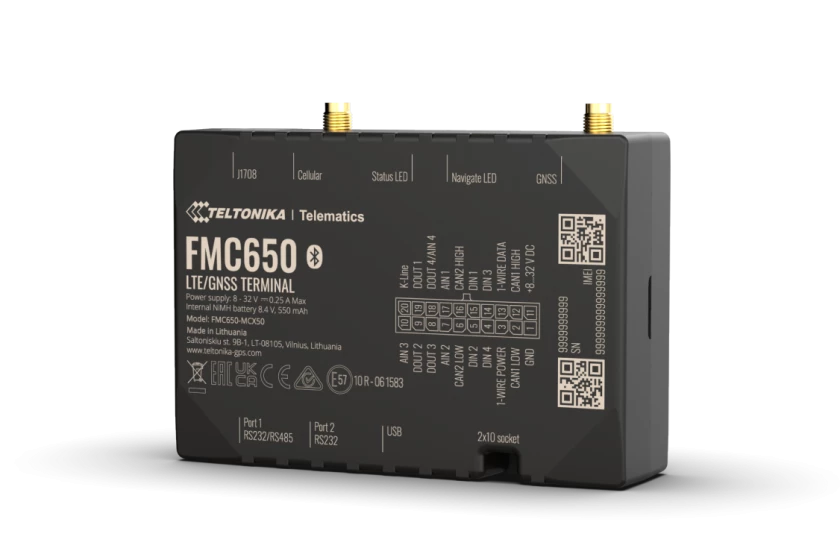

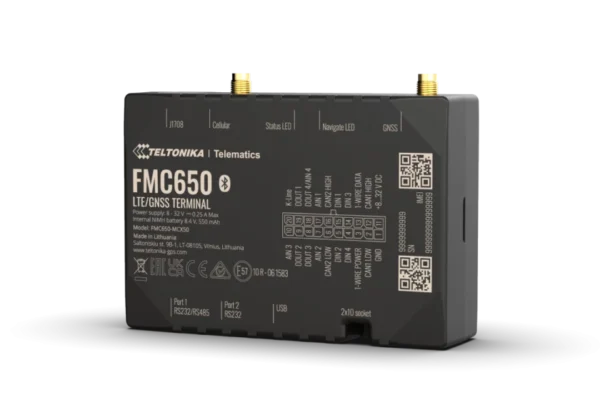

FMC650
4G
M1
2G
4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650
FMC650
4G
M1
2G
4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
Additional information
| Module | Name: FMC650-MBX50L MeiG SLM320-PE2C, FMC650-MCX50: MeiG SLM320-L16A Technology: LTE (CaT1) / 2G (GSM / GPRS) |
|---|---|
| GNSS | Module name: Airoha AG3335MB GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS Receiver: L1 and L5 dual-band GNSS receiver Tracking sensitivity: -165 dBM Position Accuracy: < 2.5 m CEP Hot start: 1.5 s Warm start: < 25 s Cold start: < 32 s |
| Cellular | Technology: LTE Cat 1, GSM 2G bands: FMC650-MBX50: B2/B3/B5/B8 FMC650-MCX50: B2/B3/B5/B8 4G LTE bands: FMC650-MBX50: LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 FMC650-MCX50: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD: B40 Data transfer: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) Data support: SMS (text/data) Transmit power: Class 4 for GSM850/900: 31±2dBm Class 1 for GSM1800/1900: 30±2dBm Class 3 for LTE-TDD: 23±3dBm Class 3 for LTE-FDD: 23±3dBm Bluetooth LE: up to 6.64 dBm |
| Power | Input voltage range: 8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection Internal Back-up battery: 550 mAh Ni-Mh, 8.4 V battery Internal fuse: 3A, 125V 2 W max. Current consumption at 12 V: GPRS: average 60 mA Nominal: average 45 mA (with no load) GNSS sleep: average 32 mA Deep Sleep: average 4 mA Online Deep Sleep: average 11 mA Full Load/Peak: <0.25A Max 2 W max. Current consumption at 24 V: GPRS: average 35 mA Nominal: average 24 mA (with no load) GNSS sleep: average 17 mA Deep Sleep: average 2,9 mA Online Deep Sleep: average 7 mA Full Load/Peak: <0.25A Max |
| Bluetooth® | Name: Blue NRG232 Specification: 5.0 + LE Supported peripherals: Temperature and Humidity sensor, Universal BLE sensors support |
| Physical specification | Dimensions: 104,1 x 76,8 x 31,5 mm (L x W x H) Weight: 197 g |
| Operating environment | Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating humidity: 5% to 95% non-condensing Storage temperature (with battery): -20 °C to +45 °C Ingress Protection Rating: IP41 Battery storage temperature: -20 °C to +45°C |
| Interface | Digital Inputs: 4 Digital Outputs: 4 Analog Inputs: 4 1-Wire: 1 RS232: 2 RS485: 1 CAN J1939: 2 J1708: 1 K-line: 1 GNSS antenna: External High Gain (L1+L5) Cellular antenna: External High Gain USB: 2.0 Mini-USB – device can be powered by USB for easier device configuration LED indication: 2 status LED lights SIM: 2x SIM Card (Dual-SIM) or 1x eSIM Memory: 16 MB internal flash memory and external Micro SD card up to 32GB Switchable CAN terminators: Supported on CAN1 and CAN2 lines |
| Features | Sensors: Accelerometer Scenarios: Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification, Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking Supported peripherals: Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (Iridium Edge/TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE sensors support Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator SMS: Configuration, Events, DOUT control, Debug GPRS commands: Configuration, DOUT control, Debug Time Synchronization: GNSS, NITZ, NTP Fuel monitoring: LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor Ignition detection: Digital Input, Accelerometer, External Power Voltage RS232 Modes: Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer RS485 Modes: Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered) |
| Certification & approvals | Regulatory: Class 4 for GSM850/900: 31±2dBm Class 1 for GSM1800/1900: 30±2dBm Class 3 for LTE-TDD: 23±3dBm Class 3 for LTE-FDD: 23±3dBm Bluetooth LE: up to 6.64 dBm |
